Mechaduino is an open-hardware controller that adds position feedback to a stepper motor, allowing the drive to respond to measured shaft movement. It cannot, by that measurement alone, establish the position of a tool beyond a coupling, screw or flexible machine structure.
For a hardware founder buying or developing a positioning system, draw the path from sensor to working point before comparing encoder specifications. Better feedback can solve a real motor-control problem while leaving another source of error untouched.
The project made the shaft observable
The Mechaduino project page, created in 2016, describes combining a stepper motor, magnetic encoder, control electronics and driver. A stepper motor moves through commanded increments; the added encoder reports the shaft's angular position so the control system can compare movement with the command.
The project uses a 14-bit magnetic encoder and describes calibration to correct variations in the sensor’s angular readings. Those details identify the measurement approach. They are not a guarantee of the finished accuracy of every machine using the board.
The firmware repository documents a calibration routine and recommends performing it with the shaft unloaded, including disconnecting a load where appropriate. This is historical project documentation, not evidence that a particular currently sold assembly has been calibrated or supported.
There is an important boundary in that setup. A shaft measurement can reveal disagreement between commanded and measured motor motion. Anything that changes the relationship between shaft angle and the working point needs additional attention.
The decimal places arrive before the accuracy does
A 14-bit encoder divides a revolution into 16,384 possible code positions. The nominal angular increment is 360 ÷ 16,384, or about 0.022 degrees. That describes the resolution of the digital scale.
Now imagine a perfectly direct drive to a screw that advances 5 millimeters per revolution. One encoder count would correspond geometrically to 5 ÷ 16,384, or approximately 0.000305 millimeters of travel. That is about 0.305 micrometers.
This is illustrative geometry, not Mechaduino's measured linear accuracy. It assumes the 5-millimeter lead, a direct relationship between rotation and travel, and no errors anywhere else. The impressive decimal does not verify any of those assumptions.
Renishaw's rotary-encoder accuracy discussion separates resolution, accuracy and repeatability and describes errors involving couplings and shaft behavior. Resolution is how finely a system reports a value. Accuracy concerns closeness to the true value. Repeatability concerns how consistently it returns to the same result.
A system can report small increments while being consistently offset. It can also return reliably to a position that differs from the intended position. Those are different commercial problems, requiring different evidence.
Trace the movement all the way to the work

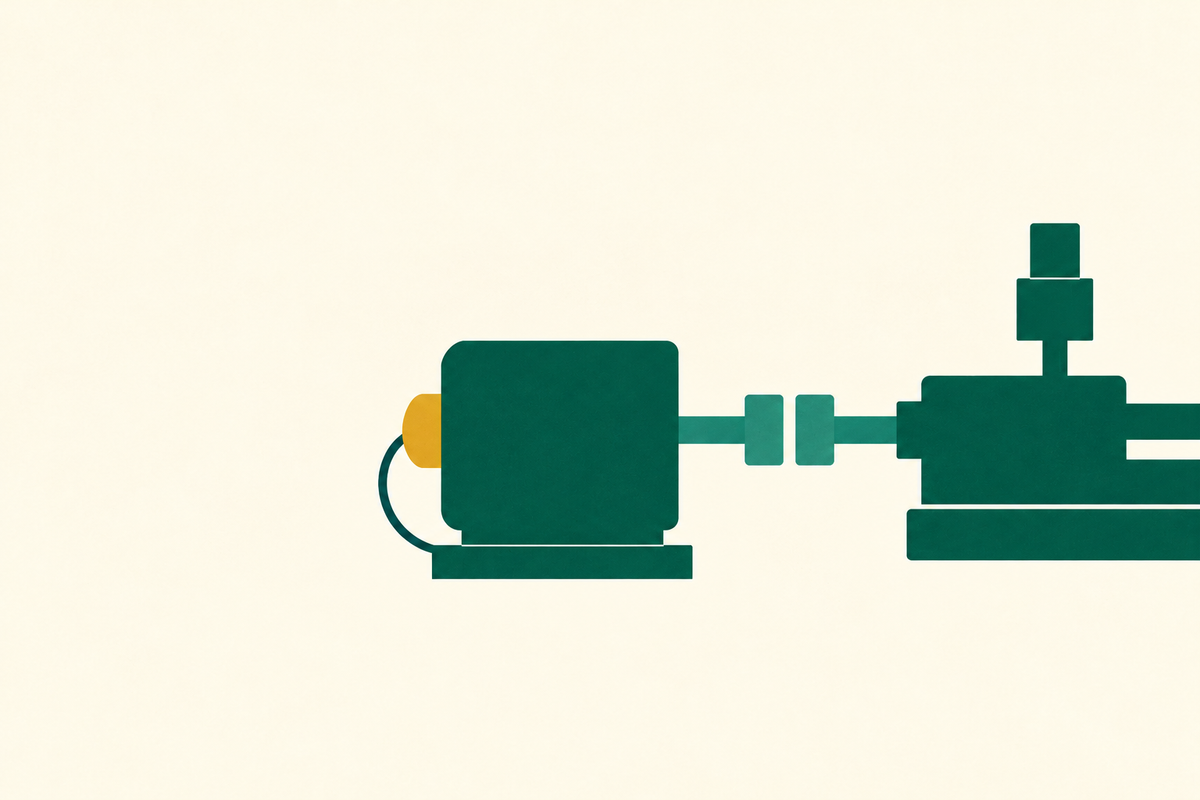

Draw a line through the actual assembly: motor shaft, coupling, screw or belt, moving carriage, fixture and tool. Mark the sensor location. Then ask what can change after that point.
A coupling may allow lost motion. A screw assembly may respond differently when direction reverses. A structure may deflect under load. These are possibilities to investigate in a particular design, not findings about a machine that has not been examined.
Suppose an imagined mechanism has 0.10 millimeter of lost motion downstream from the shaft sensor during reversal. The shaft can move while the working point initially does not. More encoder counts on that shaft do not directly measure the missing movement.
The answer may be a mechanical correction, a different measurement location or a control strategy suited to the actual mechanism. It should follow the observed error. Buying the highest-resolution motor encoder first can spend the budget before the problem is located.
The Blue Robotics motor-design story offers a related engineering discipline: understand the operating environment before choosing which conventional feature to preserve. Here the environment includes the entire transmission between motor and task.
Plan observations that separate the causes
Use the following original diagnostic planning matrix with the engineer responsible for the equipment. It is a way to define evidence, not a procedure for commissioning a live machine.
| Observation | Question it helps answer | What remains uncertain |
|---|---|---|
| Command versus shaft feedback | Did the motor follow the requested movement? | Position beyond the shaft |
| Working-point position approached from both directions | Does reversal change the result? | Cause of any difference |
| Working-point position under representative loads | Does loading change the relationship? | Behavior outside those conditions |
| Repeated moves under the same conditions | How consistent is the result? | Absolute accuracy without a suitable reference |
Give each observation a defined reference, range and operating condition. A useful result includes the measurement method and its uncertainty. Otherwise an apparent machine improvement may simply reflect a change in how the position was checked.
Keep static and moving behavior separate. A mechanism that settles accurately after a pause may behave differently during a continuous motion. The customer task determines which behavior matters.
For a product founder, this prevents a mismatch between the demonstration and the sale. A slow unloaded positioning demo may be a useful development milestone. It should not silently become a claim about machining, handling or another loaded operation.
Measure at more than one position in the intended travel range. A satisfactory result near the middle does not establish the ends, and an unloaded check does not establish the loaded task. Specify those conditions in the acceptance record so a later purchasing or support colleague can understand what was actually demonstrated.
Keep the reference instrument in the record too. If its uncertainty is large compared with the proposed improvement, the comparison may be unable to distinguish the alternatives. Extra decimal places in the controller display do not solve that measurement problem.
Ask the supplier for the result your customer buys
A purchasing brief should state the required motion at the working point, the load, the speed or settling condition, and the acceptable error. Add the measurement method that will be used to judge delivery.
Ask which parts of that requirement the supplier has actually demonstrated. An encoder data sheet may support one component specification. A motor test may support another. A complete machine result requires evidence at the relevant point in the assembled system.
Opulo's small-batch assembly case connects machine capability to the task a workshop needs completed. The same logic applies here: the buyer needs a part placed, a tool positioned or a movement repeated, rather than a large number of theoretical counts.
Mechaduino remains a useful documented example of making motor motion observable with accessible hardware. This article does not assess current board availability, certify its suitability for a particular machine or compare it against commercial drives. The surviving project documentation cannot answer those purchasing questions by itself.
Draw the measurement chain for one troublesome axis and write the result required at its working point. Put every error hypothesis on the appropriate side of the sensor. The best feedback upgrade is the one that observes the problem you need to fix, and leaves you honest about the problems it cannot see.
