Tiny Tapeout makes custom silicon accessible by refusing to sell beginners an entire chip. It divides a shared wafer design into small standard tiles, combines many people's circuits behind common input and output infrastructure, and sends the aggregate design through an older, documented fabrication process. A customer buys a sliver of the run and receives packaged chips and a development board instead of negotiating a private fabrication contract. The mechanism is more important than the novelty. When a scarce production resource has a large fixed cost, standardize the interface, aggregate buyers, and sell the smallest useful unit.
A wafer becomes a shared bus
Making an application-specific integrated circuit normally demands specialized tools, fabrication knowledge, and enough budget to absorb a failed design. Multi-project wafer services already reduced that cost by placing unrelated designs on one wafer. Tiny Tapeout, founded by Matt Venn, makes the sharing more aggressive and the interface more approachable.

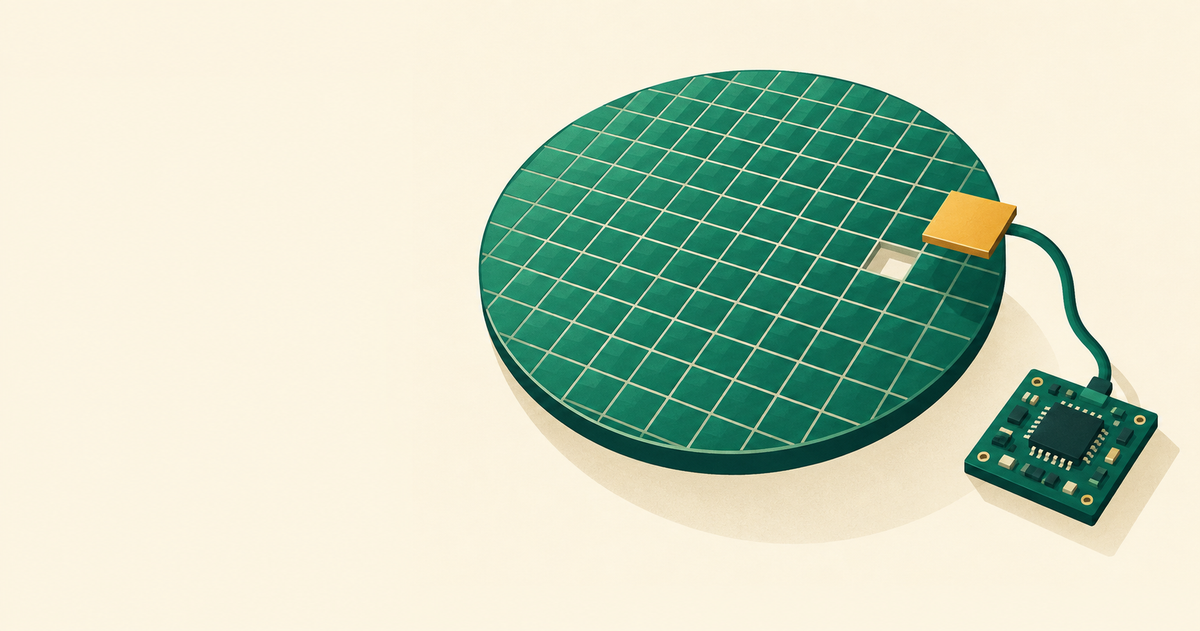

A participant can begin with a browser lesson, a Wokwi template, or hardware-description language. The design is checked against a fixed tile boundary and connected to a shared multiplexer. That multiplexer lets one packaged chip contain many submissions while selecting which design talks to the development board. The buyer is not purchasing an isolated commercial processor. The buyer is purchasing a bounded experiment in real silicon.
Tiny Tapeout's current site lists open shuttles on SkyWater and GlobalFoundries-derived processes, with price determined by process, tile count, and whether the circuit is analog or digital. It also points customers to public templates and previous designs. The service's supply is literal: each shuttle has a finite tile count and a closing date.
Why an old process is a feature
Tiny Tapeout is not competing with the process used for a leading smartphone chip. Mature nodes such as 130 nm and 180 nm offer larger transistors, lower density, and modest speed. They also have open or accessible process design kits, proven models, and economics that fit education, mixed-signal experiments, control logic, and retro-computing projects.
That constraint improves the offer. A beginner can understand a small design, simulate it, inspect the layout, and get a physical result without pretending to build a commercial system-on-chip. In April 2026, Tiny Tapeout announced a GlobalFoundries shuttle with 160 tiles. Limited inventory turns an otherwise abstract fabrication schedule into a legible product.
The outcome is not merely educational. In August 2026, Tom's Hardware reported that Pongsagon Vichit's TinyGPU v2.0 returned from a Tiny Tapeout shuttle and produced working graphics. It was a tiny, low-resolution GPU, not a market rival to Nvidia. That is precisely the useful proof: the pipeline can turn an individual's public design into functioning silicon.
The economic trick is interface compression
Consider illustrative arithmetic. Assume a shuttle offers 160 equal tiles. If the fabrication, packaging, common infrastructure, logistics, and expected failure allowance together cost a hypothetical $80,000, the unmarked base cost is $500 per tile:
$80,000 / 160 = $500.
A two-tile design consumes twice the scarce area, while one set of documentation, ordering, and shared-board design can serve the whole run. The operator must price above area cost to pay for engineering, support, payment fees, yield risk, and unsold tiles. The important point is not the hypothetical dollar result. It is the cost shape: most buyers could never justify the whole $80,000 run, while enough buyers can justify one $500-plus slice.
This is the same economic move used by shared commercial kitchens, container consolidation, and fractional warehouse pallets. The difficult work is standardization. Every exception that requires private engineering breaks the aggregation advantage.
A prototype, not a production shortcut
A Tiny Tapeout result can prove that logic works in silicon and give a designer experience with the complete flow. It does not automatically establish production yield, regulatory suitability, long-term supply, performance at temperature, or a cost-effective package for a sellable product.
A 2025 wafer.space update described Tiny Tapeout as a route from first experiments toward product work, while keeping the distinction clear: the shared flow gets a design fabricated; a production device still needs pad-frame decisions, test strategy, packaging, qualification, and repeatable volume manufacturing.
Use a three-gate rule:
- Learning gate: can the required behavior be demonstrated inside the tile, clock, I/O, and process constraints?
- Proof gate: what measurement on returned silicon would change a customer, investor, or engineering decision?
- Scale gate: if the proof succeeds, who will redesign, test, package, and fund the production version?
If the third answer is blank, call the run education or validation, not a product launch.
The one-hour action: write the proof before the circuit
Before opening a design tool, write one sentence: "This chip run succeeds if the returned silicon demonstrates X under Y conditions." Then list the pins, clock, memory, analog blocks, and measurements required. Compare that list with the current shuttle's tile and I/O limits. Delete every feature not needed for the proof.
That exercise protects against a familiar emerging-technology mistake: using cheap access to attempt too much. Cheap fabrication does not make debugging cheap, and a shuttle's calendar makes a missed assumption slower than a software patch. The relevant comparison is the boring-stack decision: choose the least ambitious system that can answer the real question.
Tiny Tapeout's deeper business lesson is portable. It did not make a semiconductor fab cheap. It made a tiny, standardized claim on one fab run easy to buy. Founders working with expensive labs, molds, test rigs, or specialized logistics can look for the same move. The opportunity is often not a cheaper factory. It is a smaller reservation, a stricter interface, and enough aggregated demand to keep the factory busy.
Design the service around failure
A shared run needs rules for late files, designs that fail checks, fabrication yield, delayed wafers, and boards lost in transit. The operator cannot promise that every customer's logic will work merely because the aggregate chip was manufactured. Its responsibility boundary should distinguish platform defects from customer design errors and explain what, if anything, is rerun.
That boundary is part of the product. A novice buys not only area but also templates, automated checks, documentation, packaging, and a known route to the next shuttle. Each support exception consumes the margin created by aggregation. Good defaults and strict submission deadlines are therefore economic controls, not bureaucratic decoration.
A founder adapting this model elsewhere should calculate utilization. If a 160-slot run breaks even at 120 paid tiles, the required utilization is 75 percent. At 100 sales, either price rises, a sponsor fills the gap, or the operator carries a loss. Publishing closing dates creates urgency, but repeat demand, university cohorts, and sponsors make the calendar financeable. Cheap access becomes a business only when enough small buyers arrive at the same fixed-cost window.
The same fixed-cost discipline appears in infrastructure break-even analysis: cheap access and cheap utilization are different claims.
Access expands when an expensive production run is divided into small, standard pieces that still let each buyer make something real.
